Overview

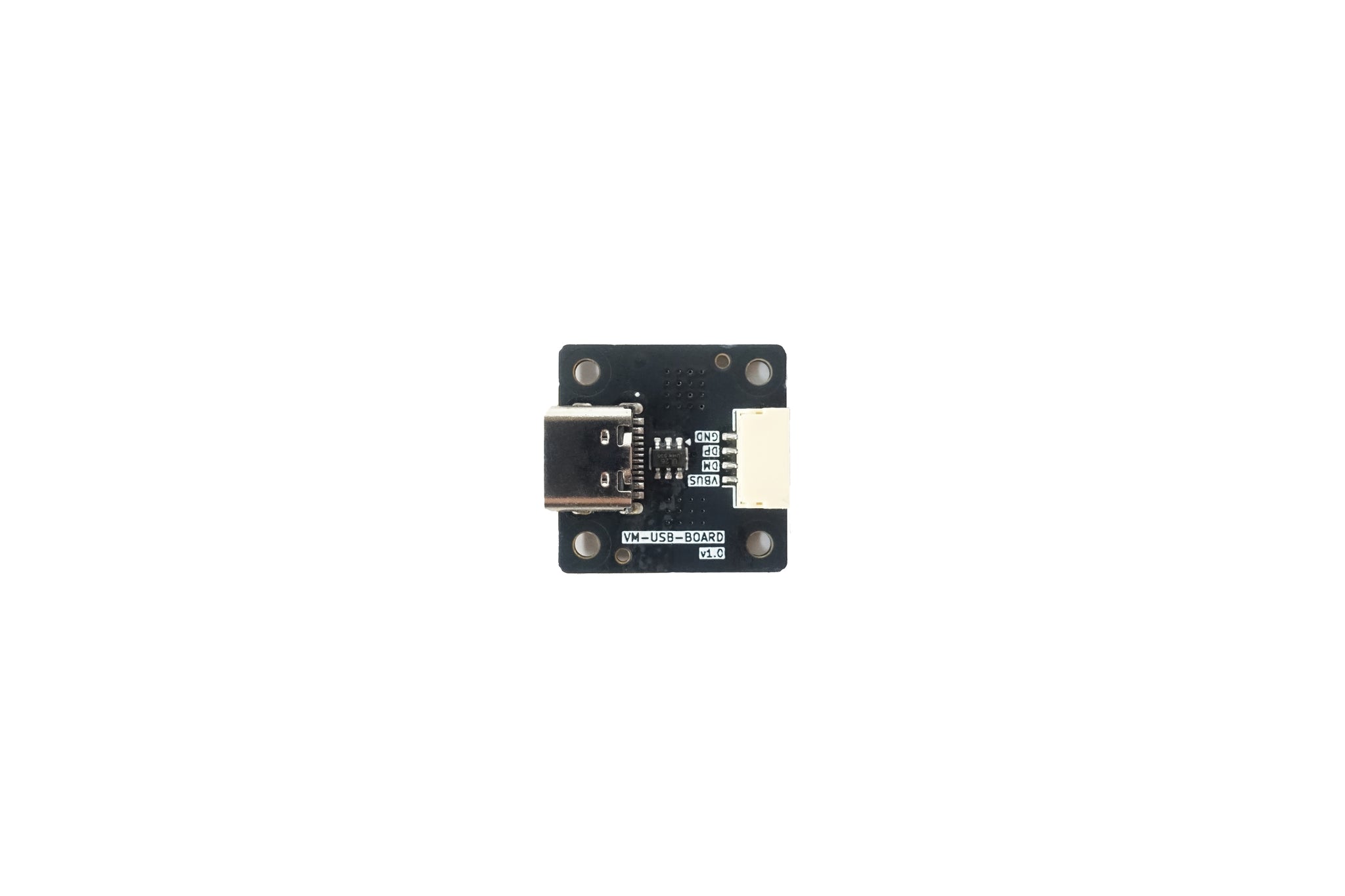

Vimdrones USB Board is a compact USB adapter board designed for flight controller connectivity and debugging.
This board bridges a standard USB Type-C connector to the Pixhawk standard 4-pin USB port (JST GH1.25 connector), enabling clean USB communication routing inside tight drone frames, purpose-built for ArduPilot and DroneCAN developers.
Join Vimdrones Discord
Specification
| Parameter | Value |
|---|---|
| Power Supply | 5V |
| Connector | USB TYPEC | Pixhawk Standard 4P USB Port (GH1.25) |
| Board Outline | 20mm * 20mm |
| Board Thickness | 1.2mm |
| Mount Hole | 4 * M2 (15mm × 15mm) |
| 3D Model | STL | STEP |

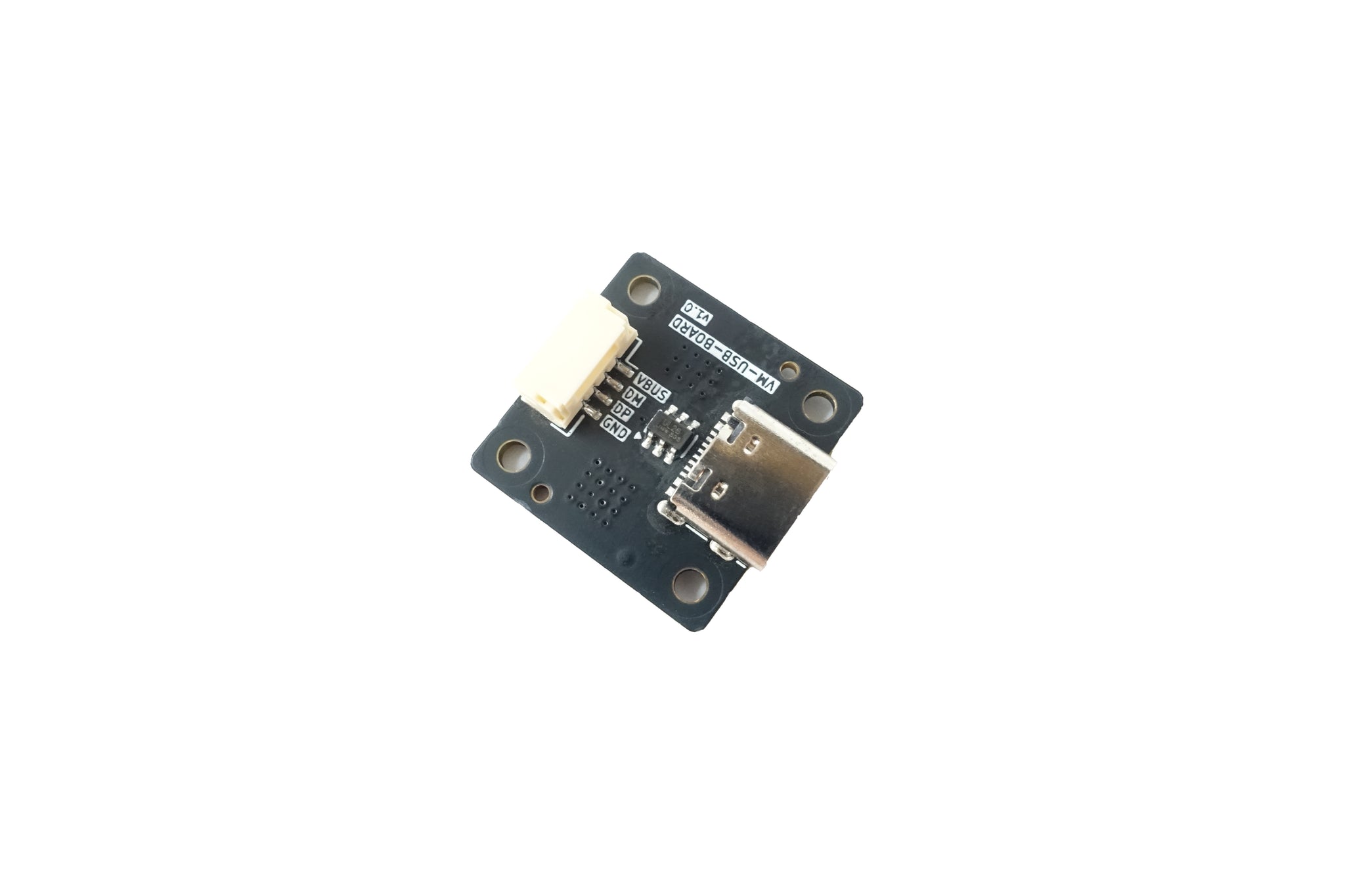

Pinout
| Pin | Signal |
|---|---|
| 1(red) | VBUS |
| 2(black) | DM |
| 3(black) | DP |
| 4(black) | GND |

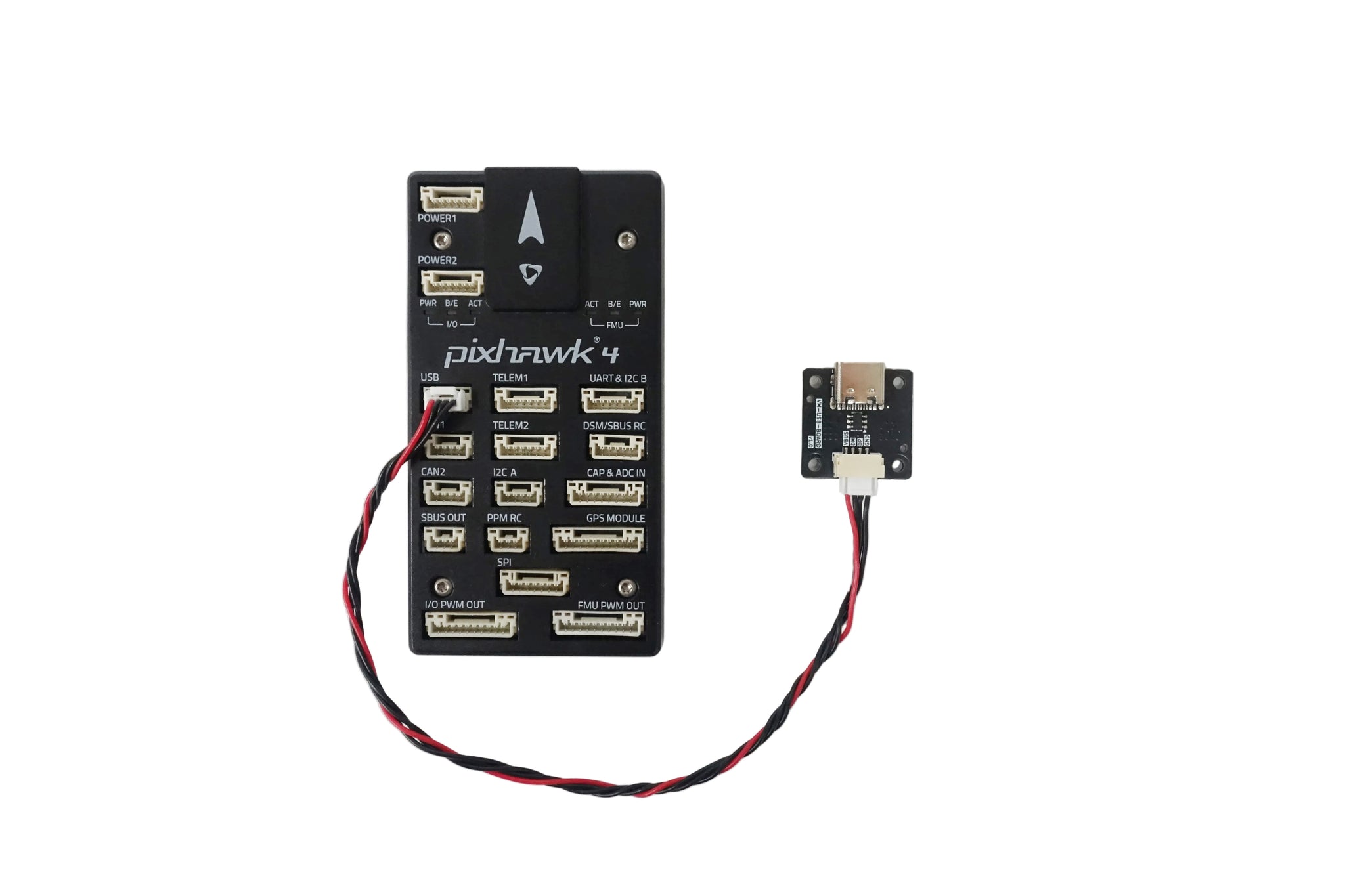

Wiring
Use Cases
- Flight controller USB debugging and firmware flashing
- Clean in-frame USB cable routing integration

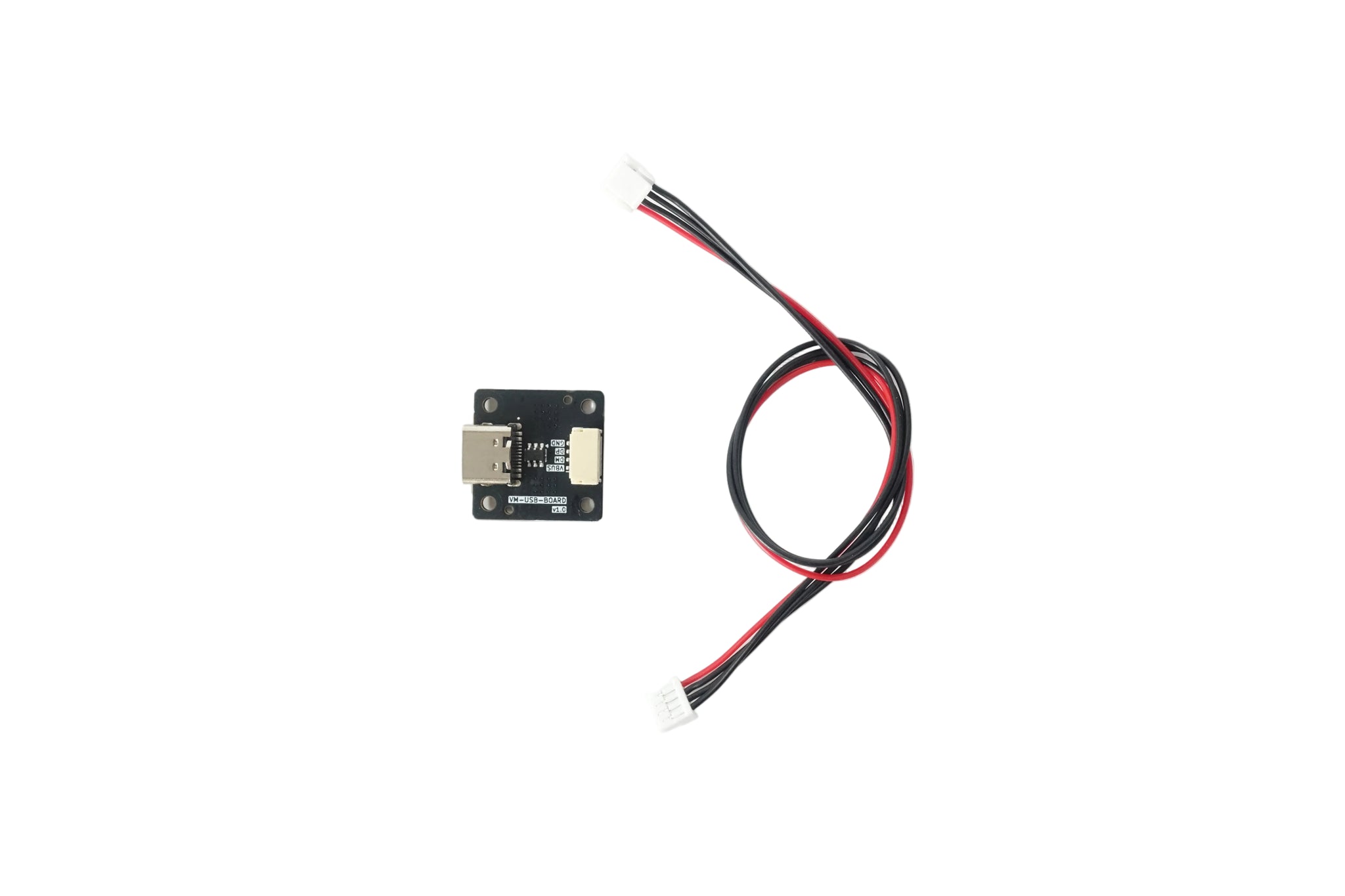

Shipping List
1*Vimdrones USB Board
1*20cm JST GH 1.25mm Pitch 4-Pin Silicone Cable
