Vimdrones Telemetry ESP32C6 is a compact wireless telemetry module designed for UAV development and system integration. Built on the ESP32-C6 platform, it enables reliable Wi-Fi MAVLink telemetry communication between Pixhawk flight controllers and ground systems.
Designed for the ArduPilot and PX4 ecosystem, it provides a convenient solution for wireless monitoring, configuration, and debugging during drone development, testing, and field operations.
Join Vimdrones Discord
Telemetry ESP32C6 Specification
| Parameter | Value |
|---|---|
| Power Supply | 5V |
| SOM | Espressif ESP32-C6-MINI-1U |
| WiFi | 802.11 b/g/n/ax (WiFi 6), 2.4GHz |
| Bluetooth | 5.0 LE |
| Connector | Pixhawk Standard 6P Telem Connector (UART + FLOW) |
| Firmware | Drone Bridge |
| Firmware Target | ESP32 C6 |
| Firmware Flash Interface | USB DFU |
| Board Outline | 26mm × 26mm |
| Mount Hole | 4 * M2 (20mm × 20mm) |
| 3D Model | STL | STEP |

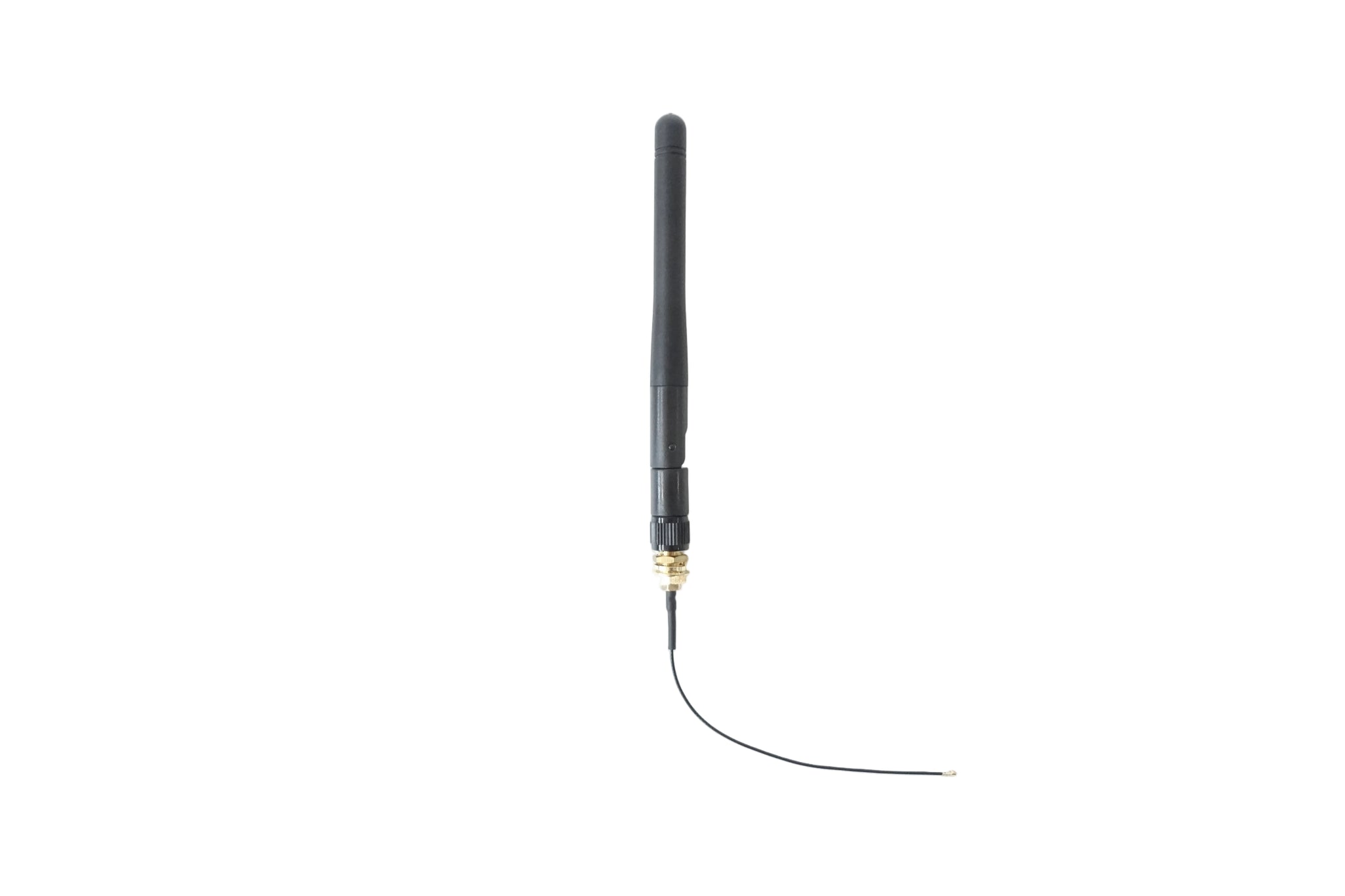

Rubber Antenna & RF Cable Specification
| Parameter | Value |
| Frequency Range | 2400-2500MHz |
| Input Impendence | 50Ω |
| Gain | 1.9dBi |
| Power Capacity | 50W |
| Dimensions | 105x⌀7mm |
| ConnectorType | SMA-J Male |
| Weight | 6.22g |
| Feature | Foldable |
| RF Cable | IPEX3 to SMA Female, RG-081, 10cm |
Pinout

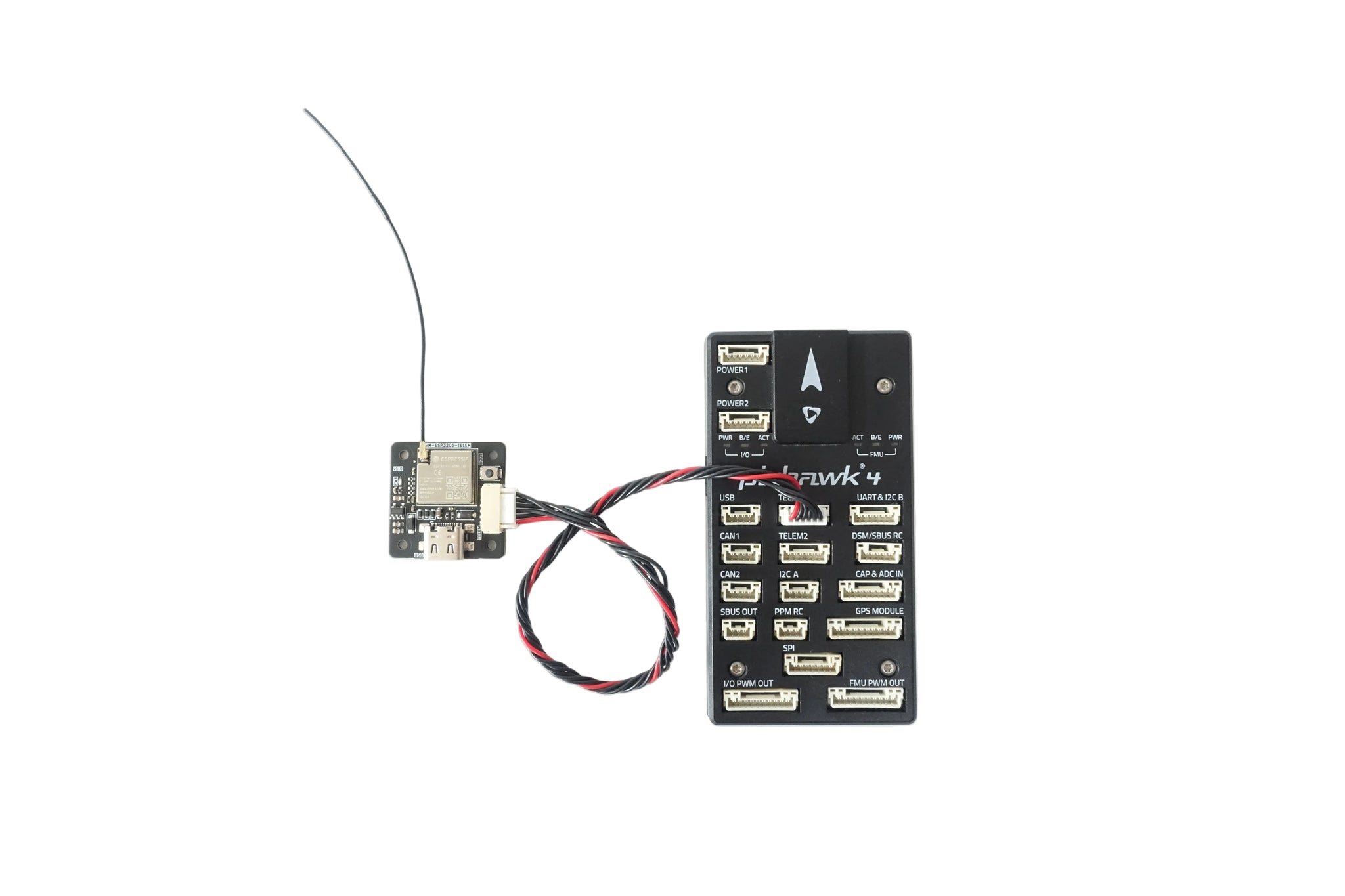

Wiring
Shipping List
Vimdrones Telemetry ESP32C6
1*Vimdrones Telemetry ESP32C6
1*20cm JST GH 1.25mm Pitch 6-Pin Silicone Cable

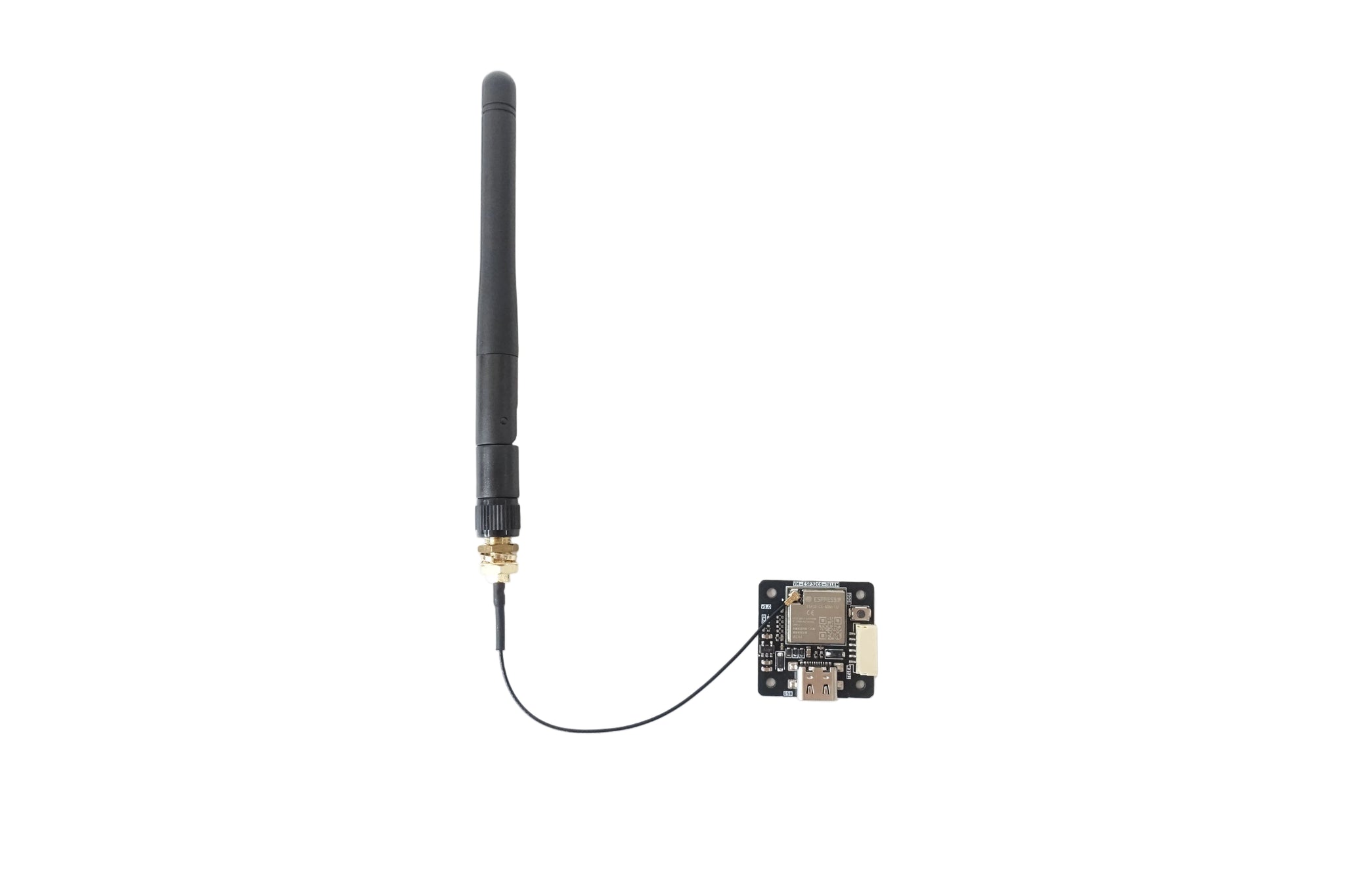

Vimdrones Telemetry ESP32C6 + Rubber Antenna & RF Cable
1*Vimdrones Telemetry ESP32C6
1*2.4G Rubber Antenna
1*10cm IPEX (MHF3) to SMA Female RF Coaxial Cable
1*20cm JST GH 1.25mm Pitch 6-Pin Silicone Cable
