Overview

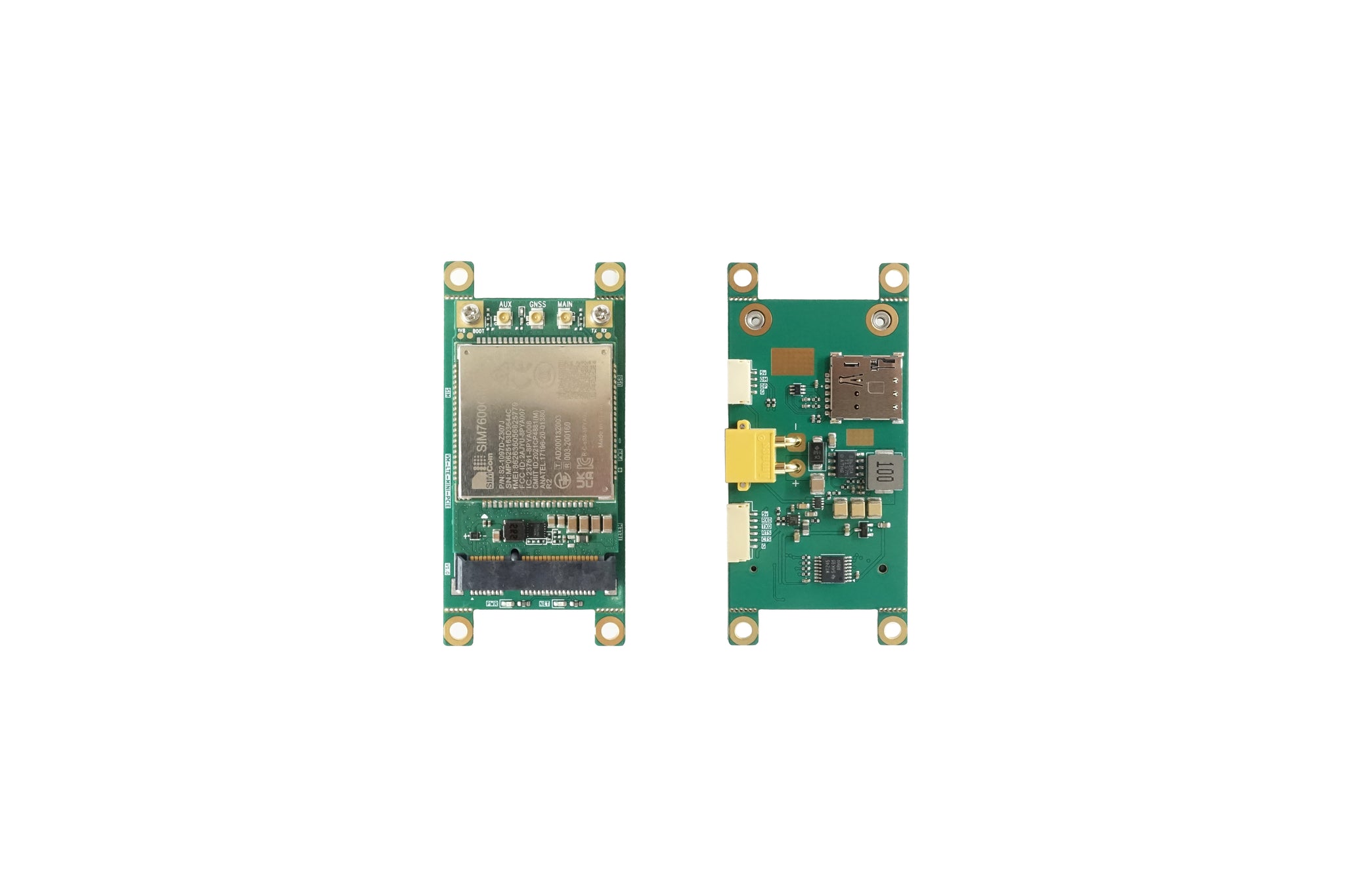

Vimdrones Telemetry LTE Base Board brings 4G LTE cellular connectivity to ArduPilot-based drones. Plug in any SIM7600 Mini PCIe module, insert a nano SIM, and your flight controller gains long-range network telemetry — no extra converters or regulators required.
Join Vimdrones Discord
Features
- Ardupilot Serial Direct LTE Network via Transparent Mode or PPP
- TTL level convert
- Extra Battery power supply

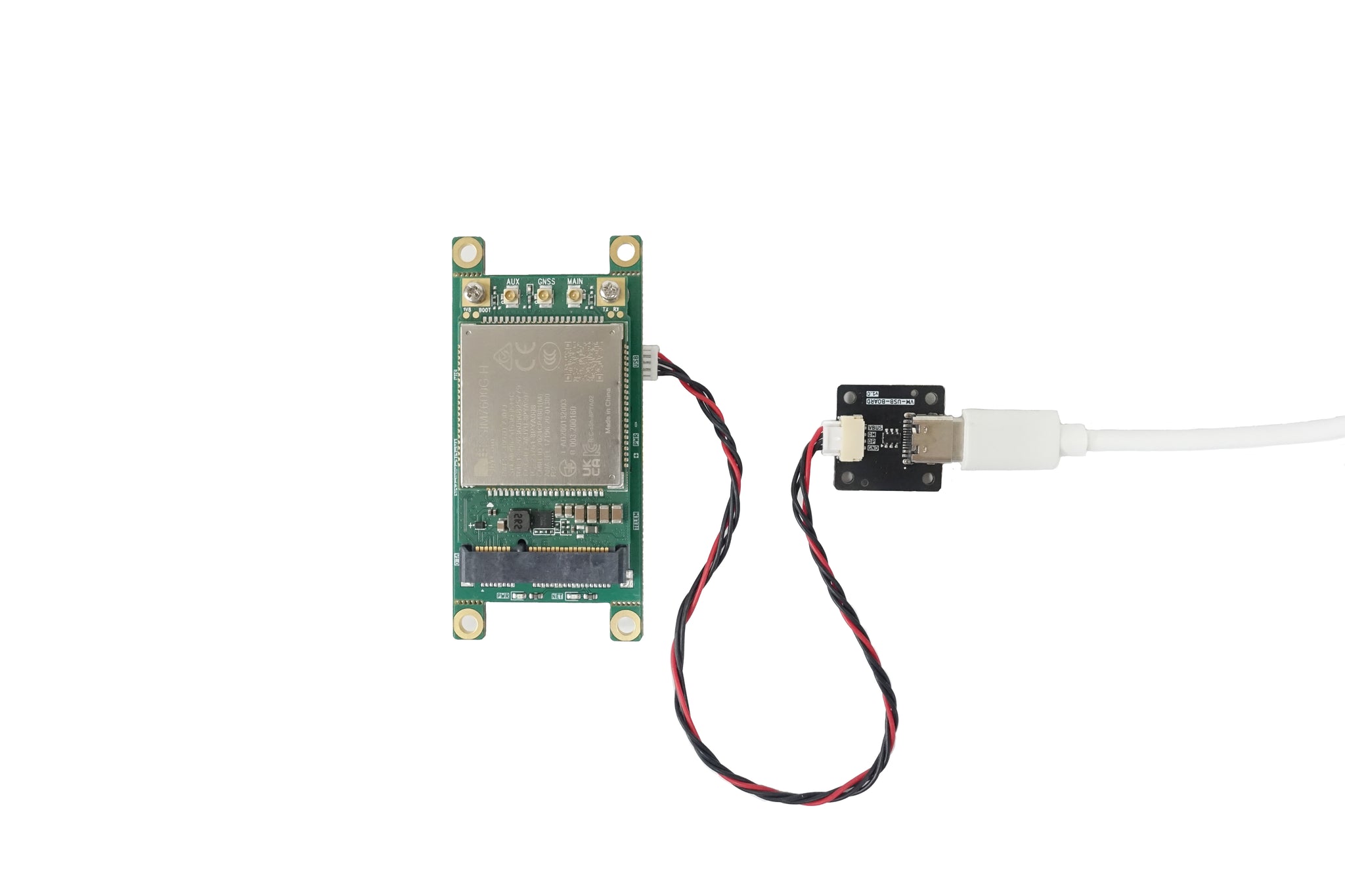

- USB interface for Linux SBC
Specification
| Parameter | Value |
|---|---|
| Power Supply | 2S-6S (XT30) | 5V (Telem /USB) |
| Support LTE Module | all SIM7600 PCIE variants |
| LTE Connector | Mini PCIE |
| SIM Card Type | Nano SIM (4FF) |
| Telem Connector | Pixhawk Standard 6P Telem Connector (UART + FLOW) |
| USB Connector | Pixhawk Standard 4P USB Connector |
| Board Outline | 74mm * 35mm | 60mm * 35mm (mount hole removed) |
| Mount Hole | 4 * M3 (68mm * 29mm) removable |
| 3D Model | STL | STEP |
None SIM7600 PCIE modules
Other PCIE modules like Quectel EC200 PCIE, the UART pin define and TTL voltage level are totally different, so not recommended to use with this base board, although the USB interface is working
Pinout

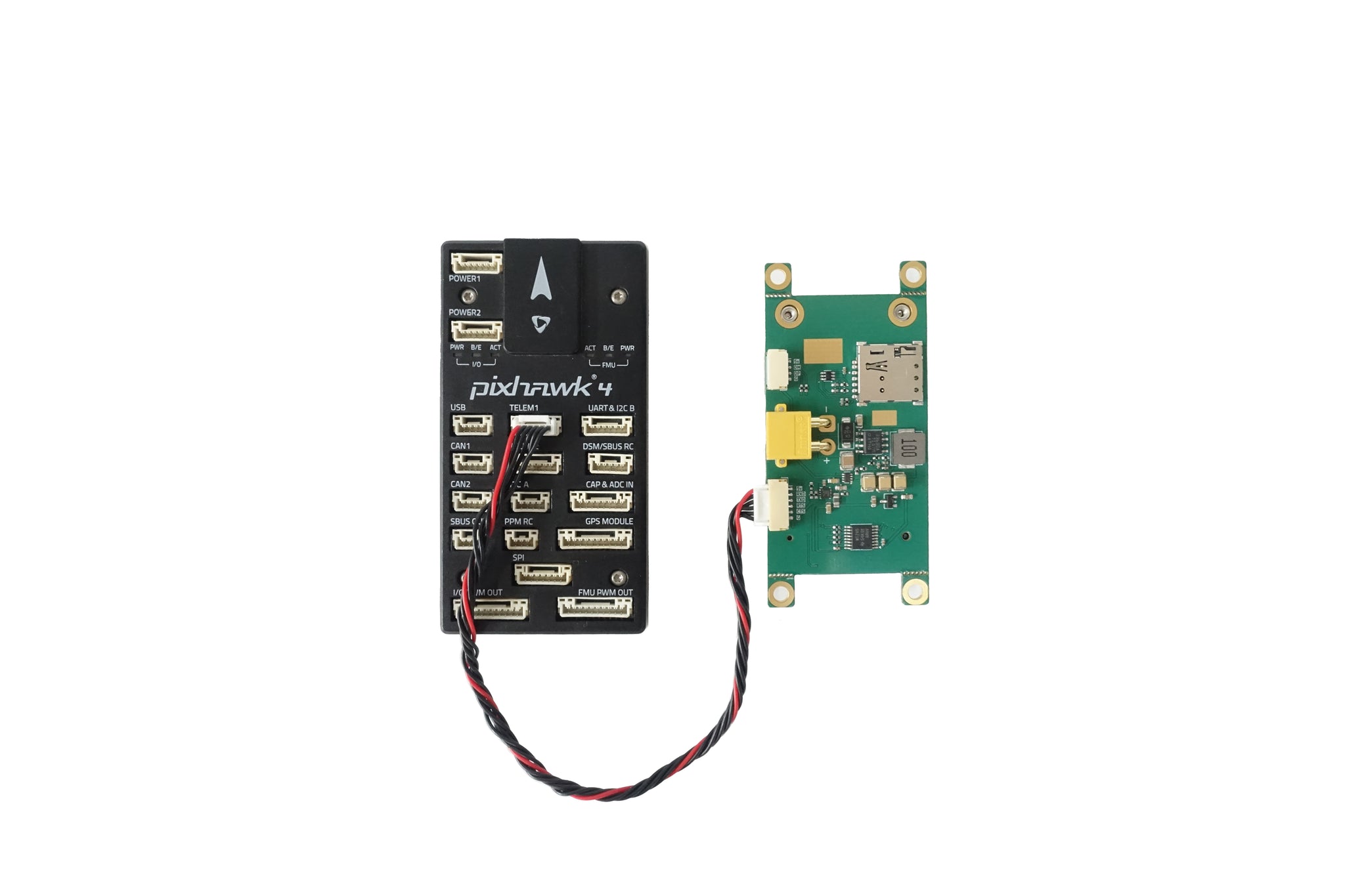

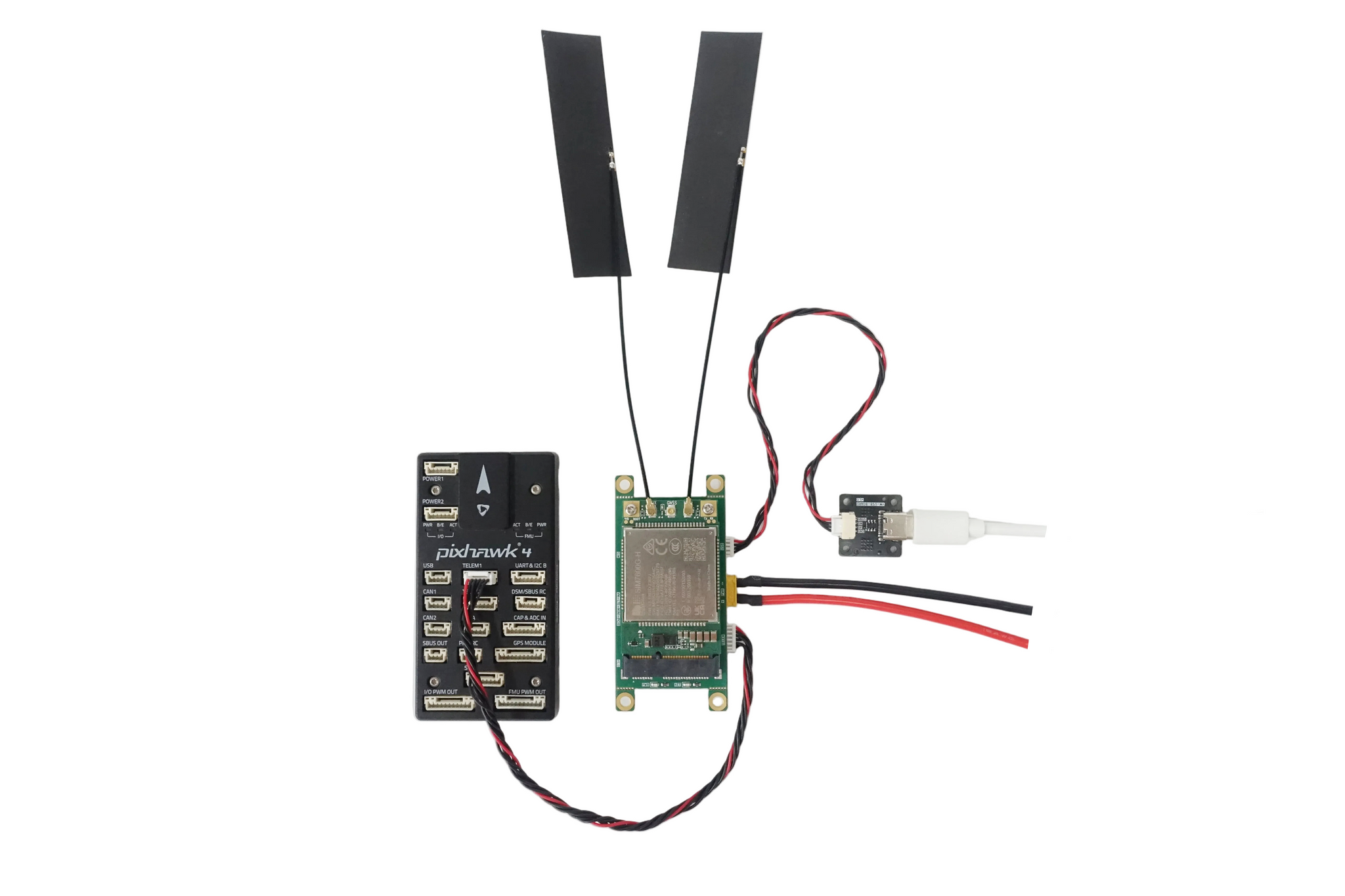

Wiring
Shiping List
LTE MINI PCIE Board + USB Board(Not include 4G module)

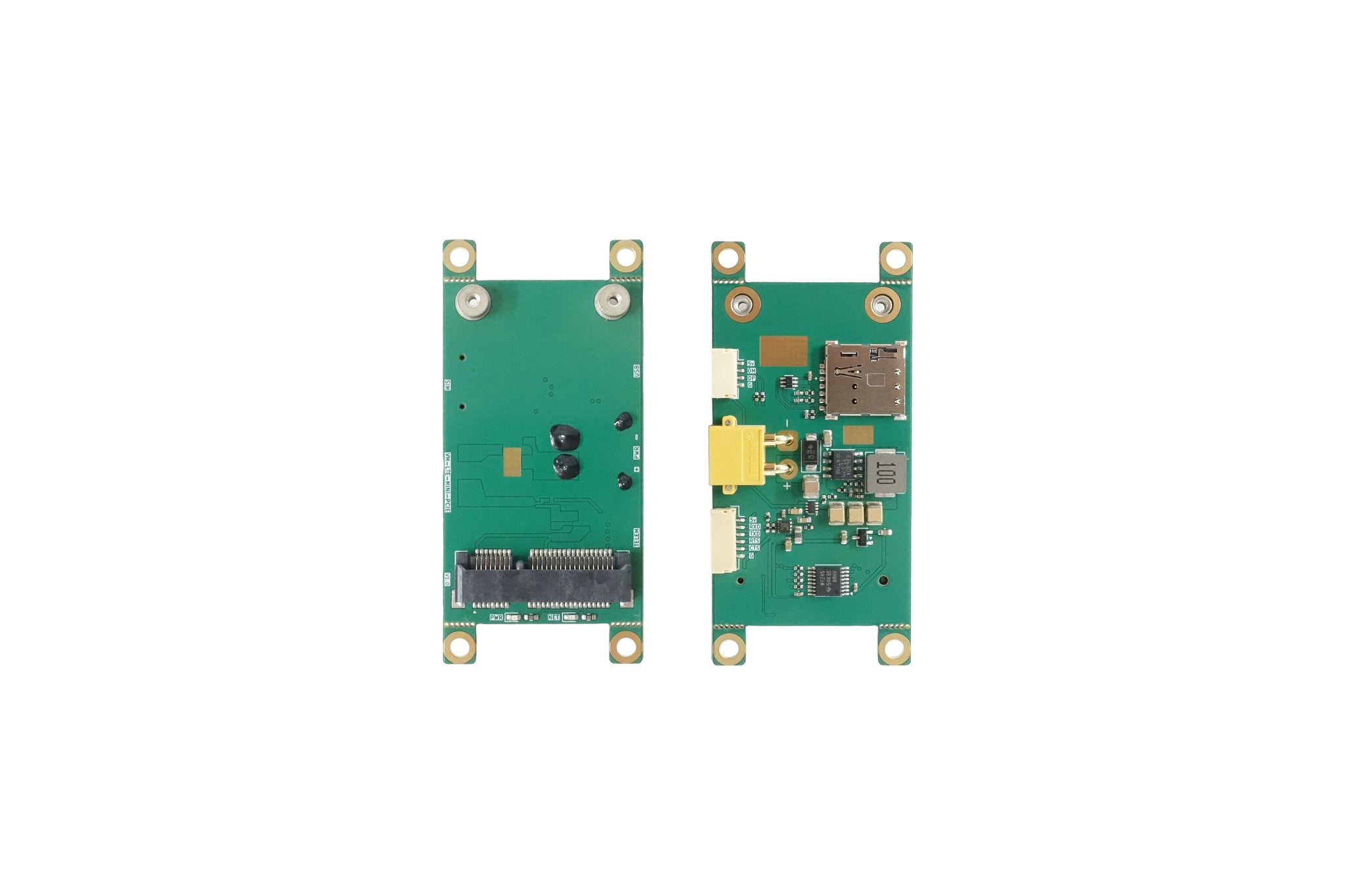

1*LTE MINI PCIE Board
1*USB Board
1*20cm JST GH 1.25mm Pitch 4-Pin Silicone Cable
1*20cm JST GH 1.25mm Pitch 6-Pin Silicone Cable
1*20cm JST GH 1.25mm Pitch 6-Pin Silicone Cable (5 Wires Populated, All Black, No VCC Wire)

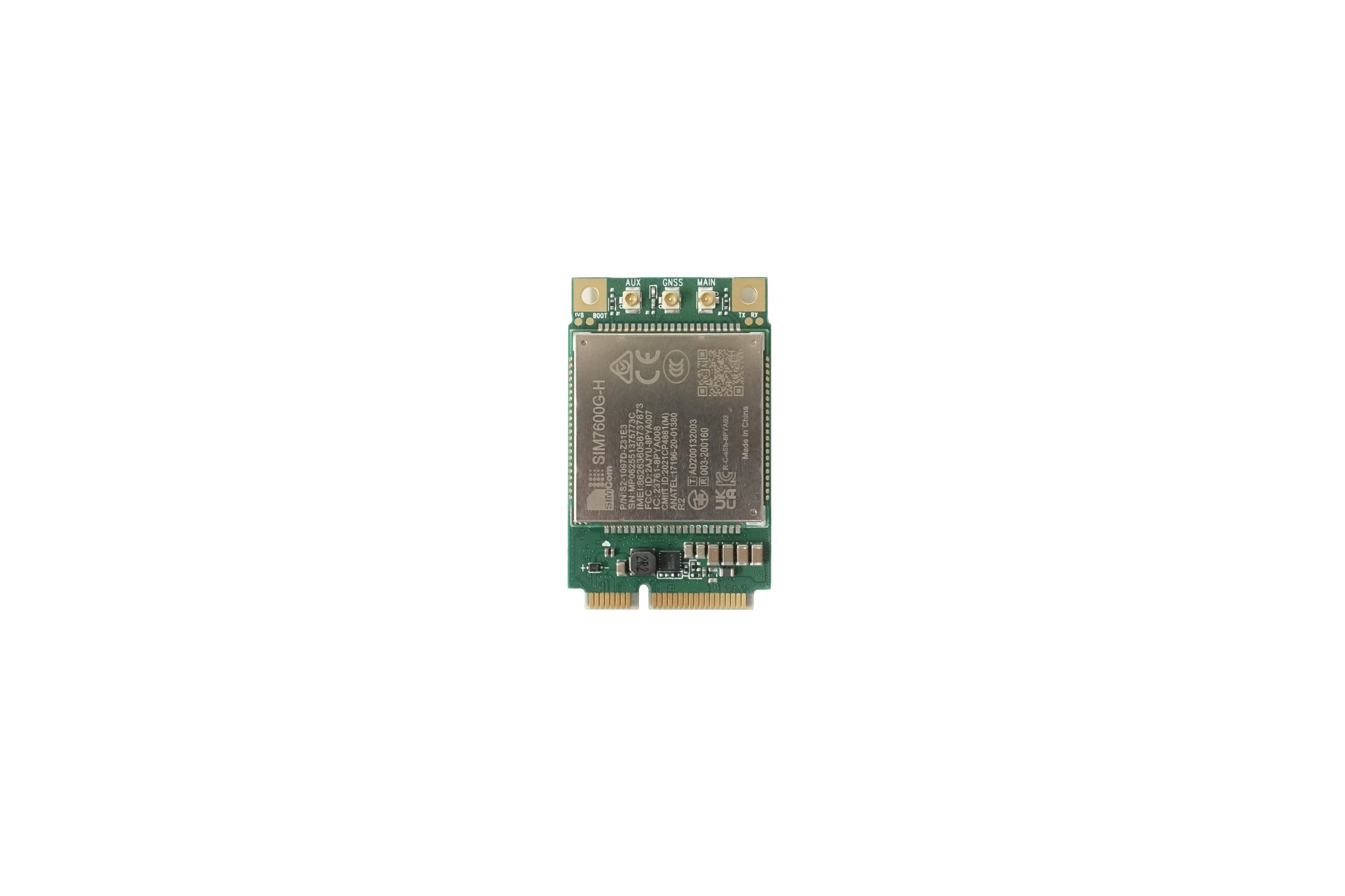

SIM7600G-H MINIPCIE 4G global band module(Includes 2 antennas)
1*SIM7600G-H MINIPCIE 4G global band module

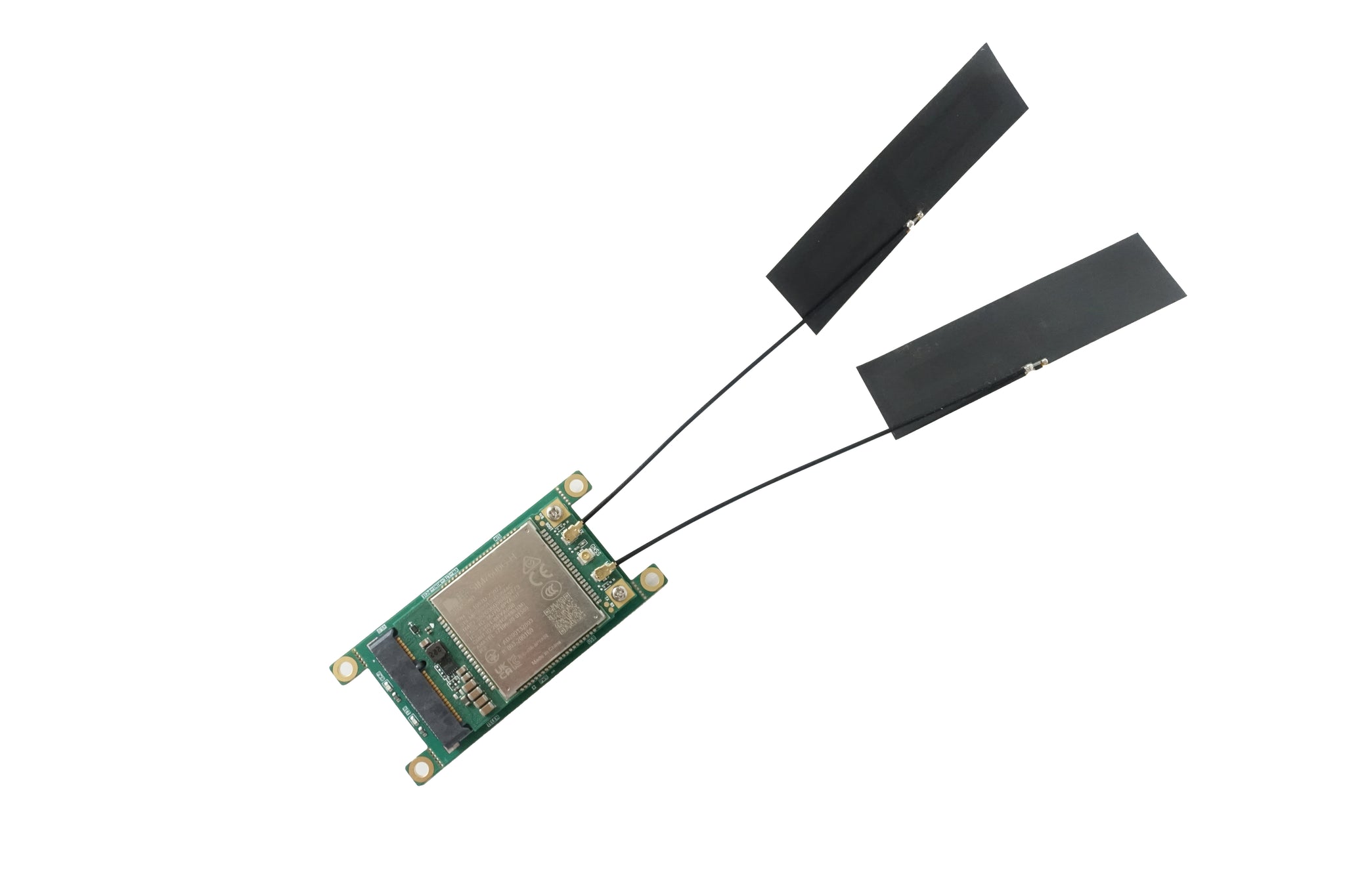

2*BAT WIRELESS 4G LTE FPC Antenna (IPEX-1, 120mm Cable)

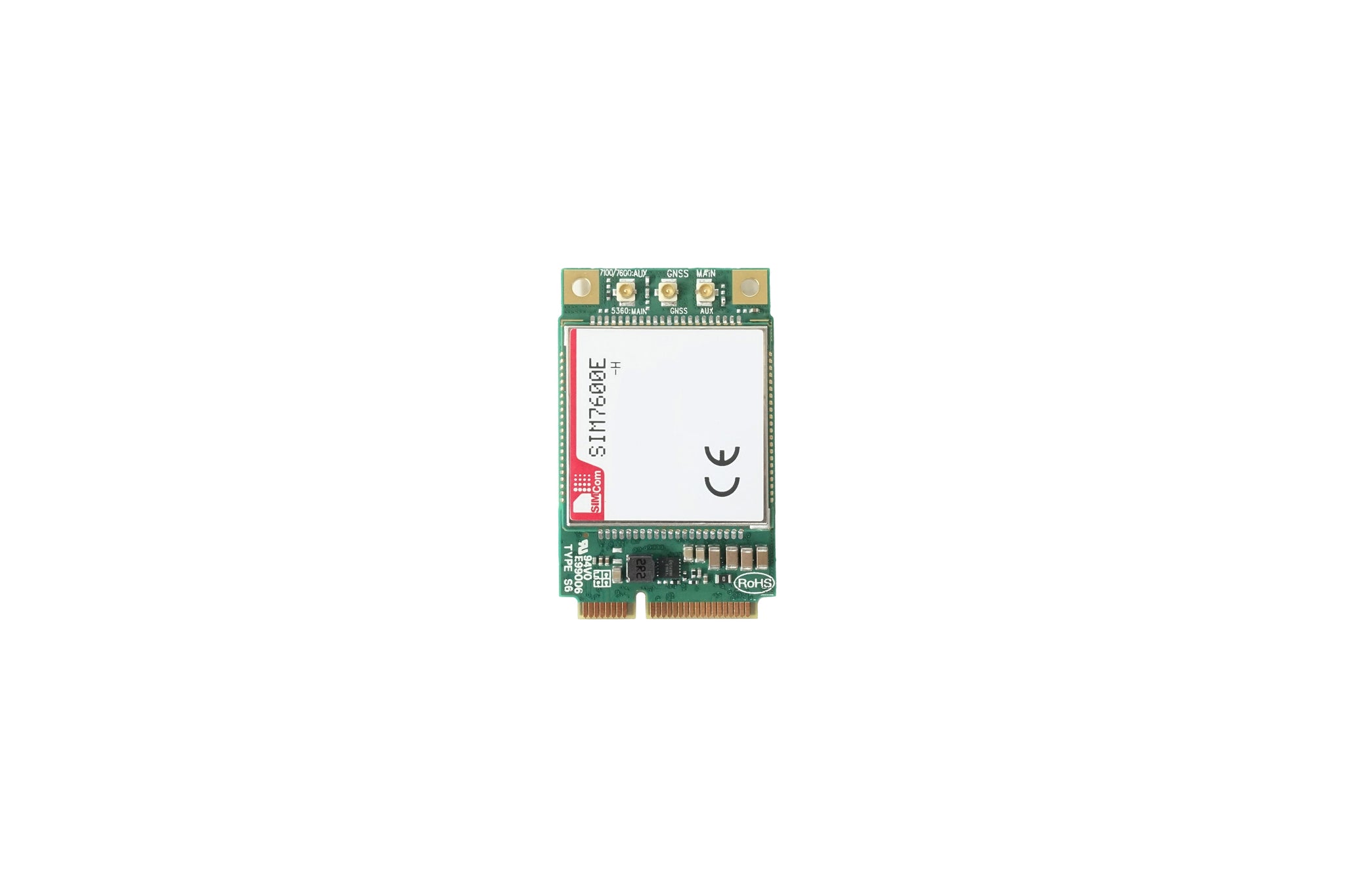

SIM7600E-H 4G module (Includes 2 antennas)
1*SIM7600E-H 4G module
2*BAT WIRELESS 4G LTE FPC Antenna (IPEX-1, 120mm Cable)
