Vimdrones CAN Servo Hub 4CHP

Firmware Support

• AP_Periph

Q&A

• Vimdrones Discord

Wiki

• AP Periph

Specification

• Input Voltage: 7V - 30V
• Servo VCC Voltage: 6V / 8V
• Servo VCC Current: 3A max
• Board Outline: 35mm * 19mm (mount hole removed)
• Mount Hole: 2 * m2 (removable)(39mm center distance)
• Board Thickness: 1.2mm

Features

• Dronecan Servo Control - uavcan.equipment.actuator.Command
• 4 channel Servo VCC current measure

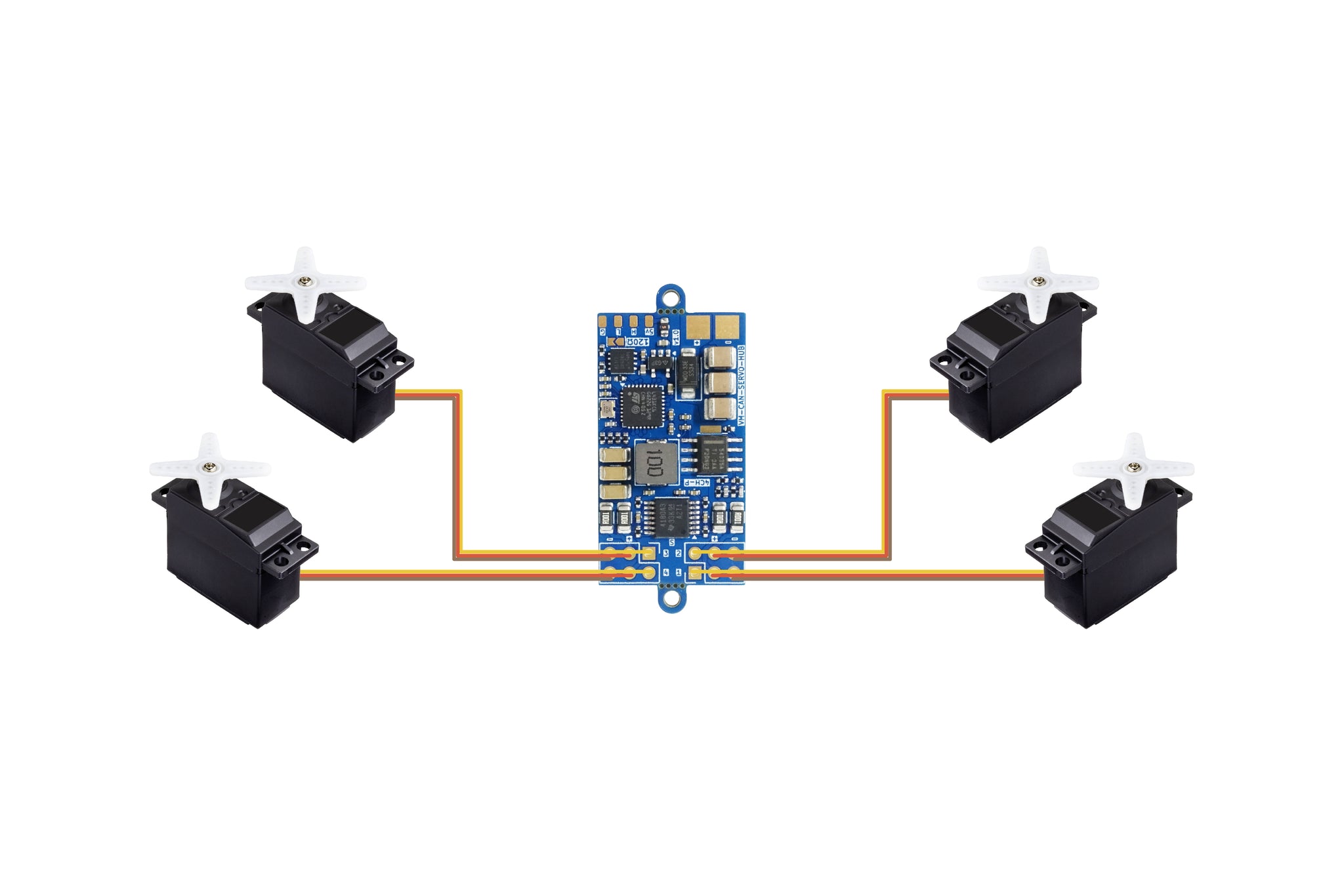

Wiring

More Details

• Development Doc
