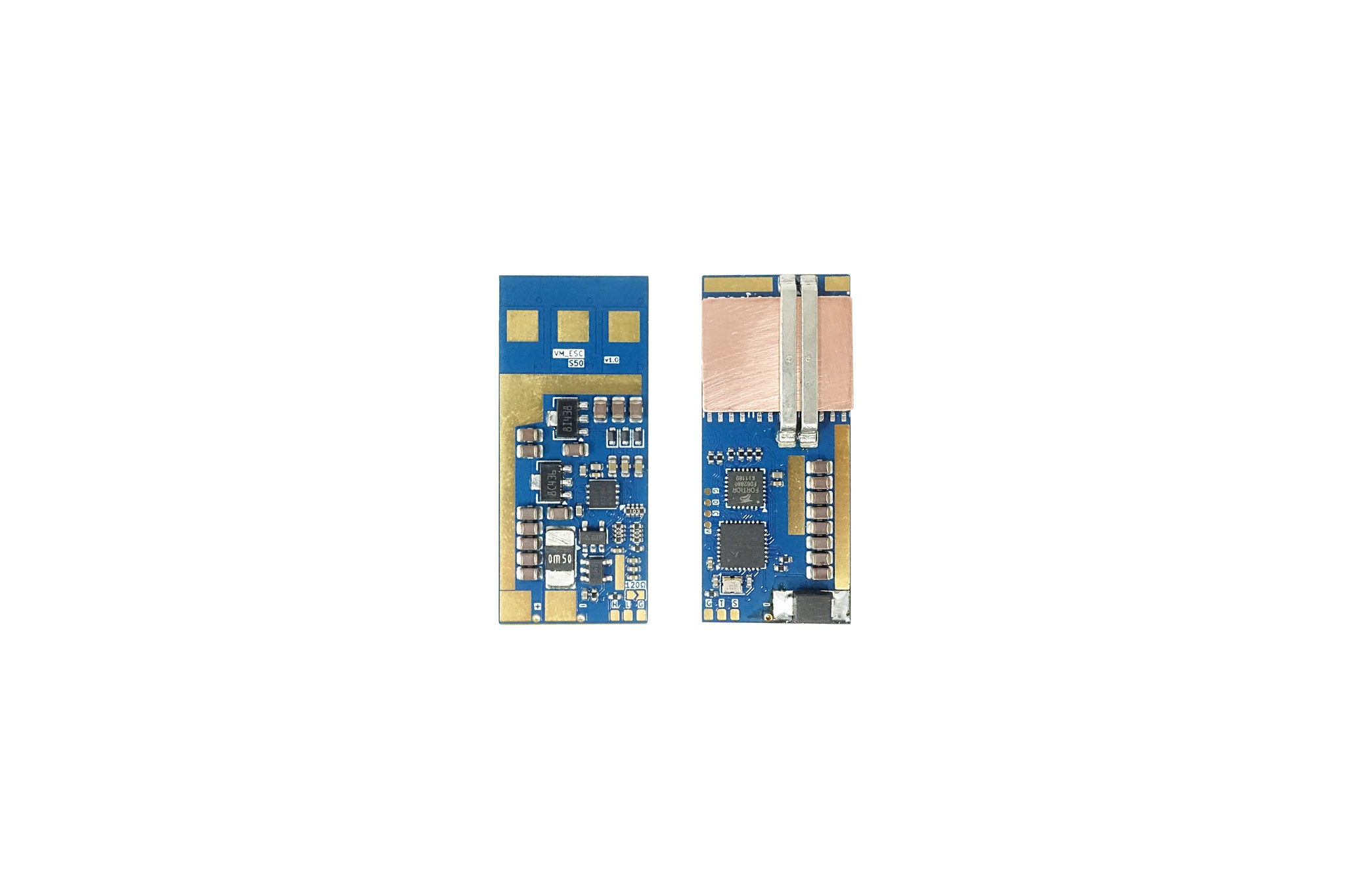

Vimdrones AM32 DroneCAN ESC S50 50A

Regular price: $20.90
Sale price: $20.90
Regular price
Unit price: per

Shipping calculated at checkout.

Combo

Quantity must be 1 or more

Discover the Vimdrones AM32 DroneCAN 50A ESC S50 — compact, reliable, and high-performance. Perfect for ArduPilot drones, with CAN bus support, 80A peak current, and AM32 open-source firmware.

We offer volume discounts for bulk orders of the Vimdrones AM32 DroneCAN ESC S50. Please select combo 1 set.

• Orders of 7 sets or more receive a 5% discount($19.86 per unit).

• Orders of 50 sets or more receive a 10% discount($18.81 per unit).

• Orders of 100 sets or more receive a 15% discount($17.77 per unit).

• Orders of 500 sets or more receive a 20% discount($16.72 per unit).

Specification

Parameter	Value
Power Supply	2S – 6S
MCU	ST STM32L431KCU6
MOSFET	TOSHIBA TPHR8504PL
Continuous Current	50A (cooling required above 30A)
CAN Ports	1
CAN Termination	120Ω with Solder PAD switch, default OFF
CAN Port Connector	Solder PAD
Board Outline	40mm × 17mm
3D Model	STL \| STEP
Firmware	`AM32`
Firmware Target (CAN Version)	`VIMDRONES_S50_L431_CAN`
Bootloader Target (CAN Version)	`AM32_L431_BOOTLOADER_PA2_CAN`
Input (CAN Version)	DroneCAN
Telemetry (CAN Version)	DroneCAN `uavcan.equipment.esc.Status` — RPM \| Voltage \| Current \| Temperature
Features (CAN Version)	Voltage Sampling, Current Sampling, HSE
Firmware Target (Standard)	`VIMDRONES_S50_L431`
Bootloader Target (Standard)	`AM32_L431_BOOTLOADER_PA2`
Input (Standard)	DSHOT / PWM
Telemetry (Standard)	BDSHOT / EDSHOT — RPM \| Voltage \| Current \| Temperature

Wiring

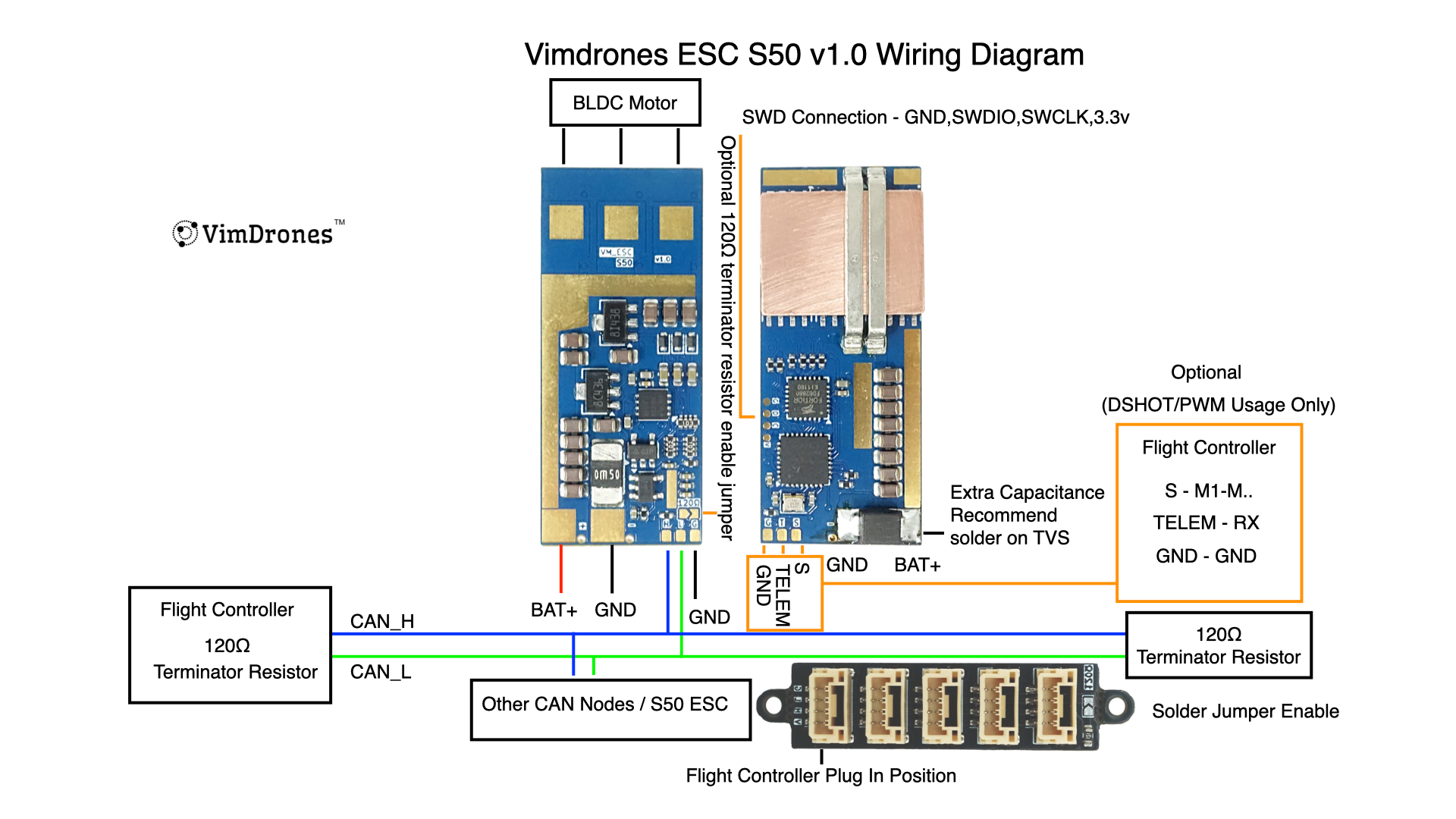

Vimdrones ESC S50 Wiring

Shipping List

1 set including

No.	Item	Quantity	Notes
1	Vimdrones S50 ESC	1	DroneCAN Version
2	CAN Signal Cable	1	50 cm
3	Twisted Servo Signal Cable	1	28AWG silicone cable, 18 cm
4	Red & Black Silicone Power Cable	1	14AWG silicone cable, 50 cm
5	Heat shrink tubing	1	5.5cm

Looking to purchase in larger quantities for your project or business?

We support engineers, developers, and OEM teams with high-quality components and flexible volume options.

Whether you’re prototyping, deploying fleets, or integrating with advanced UAV systems, we’ve got you covered.

💬 Chat with us for bulk pricing, technical support, and developer-friendly service.

🛠️ Fully compatible with the Vimdrones ecosystem, DroneCAN standards, and open-source workflows like ArduPilot.

For more details please visit the Doc
For technical support please Join Vimdrones Discord

Test Report

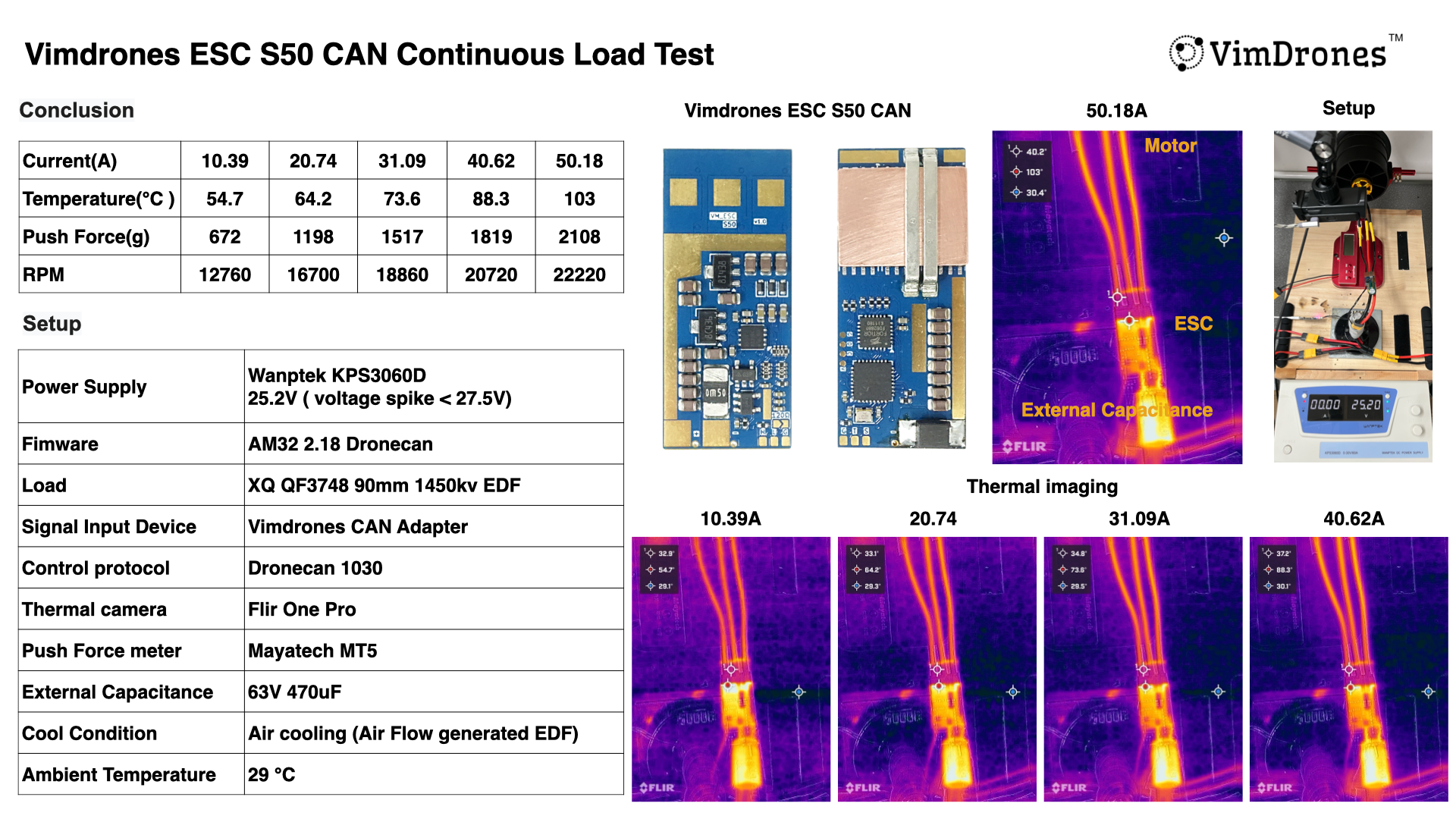

50A Continuous Test
50A Continuous Test Video

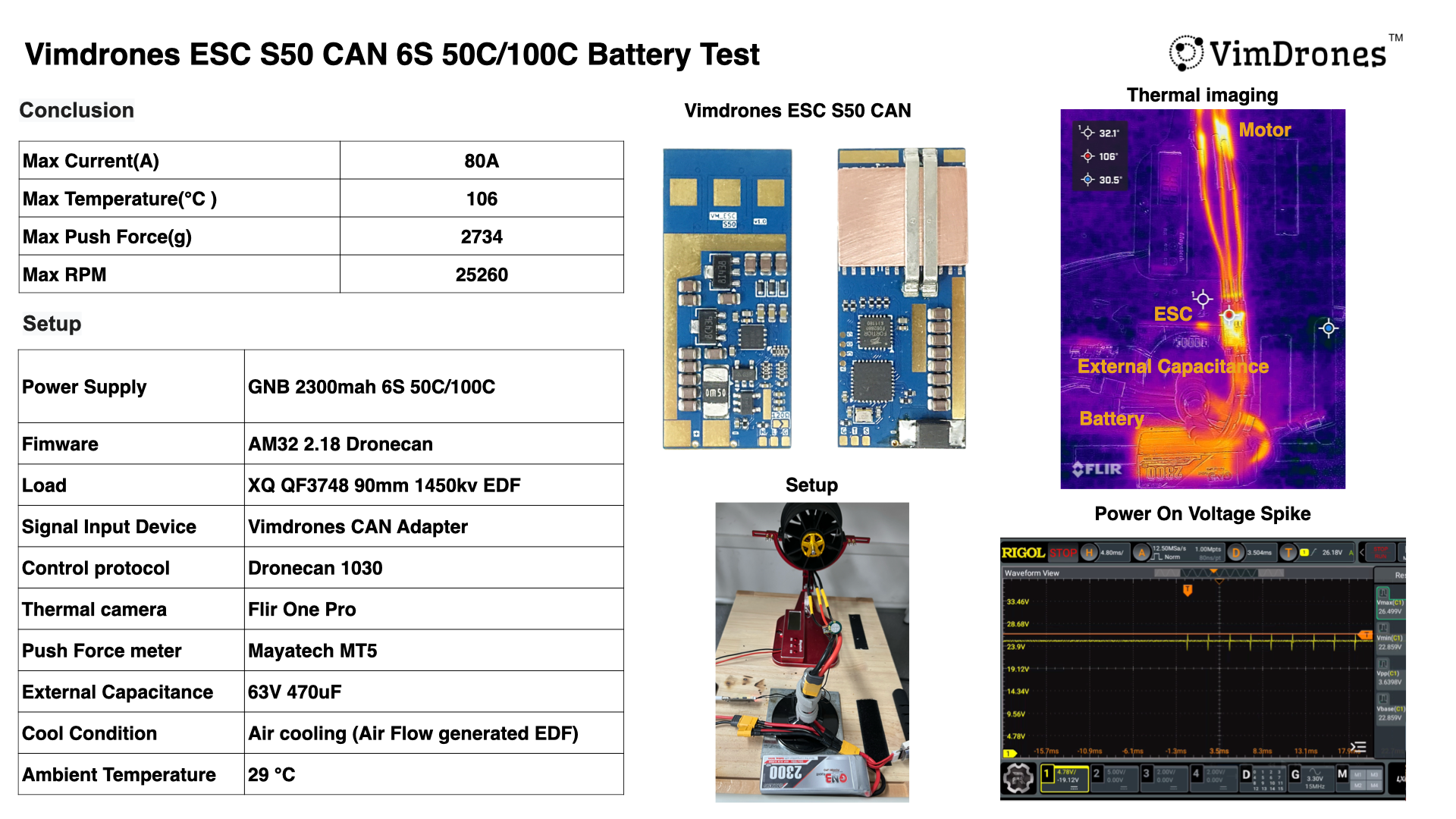

6S 50C/100C Battery Test
6S 50C/100C Battery Test Video
